Greetings from Finland
Hello everyone
We were touring Lake Ladoga with Volvo c303 and c306 cars. On the evening campfire, I told you that I would like to buy some different 4x4 car. A week later, a friend of mine sent a picture of tp3. I bought it, the year was 2007. 2 years of construction. I bought another tp3 in 2017. the first one I installed a Man diesel and the second is a Nissan sd33 engine. In this picture, both beauties
We were touring Lake Ladoga with Volvo c303 and c306 cars. On the evening campfire, I told you that I would like to buy some different 4x4 car. A week later, a friend of mine sent a picture of tp3. I bought it, the year was 2007. 2 years of construction. I bought another tp3 in 2017. the first one I installed a Man diesel and the second is a Nissan sd33 engine. In this picture, both beauties
Re: Greetings from Finland
Hello,
Welcome to this forum !
Happy to see that some of French oldies has survived in your country !
The TP3 model is a really interesting truck and could not say "no" to his face !
Xavier.
Welcome to this forum !
Happy to see that some of French oldies has survived in your country !
The TP3 model is a really interesting truck and could not say "no" to his face !
Xavier.
-
- Outilleur
- Reactions :
- Messages : 40
- Enregistré le : 21 févr. 2020 21:14
Re: Greetings from Finland
Xavier asked about my location. I live about 50 km from Helsinki
Re: Greetings from Finland
Hello mtp3 finland a écrit : ↑13 avr. 2021 20:43 Hello everyone
We were touring Lake Ladoga with Volvo c303 and c306 cars. On the evening campfire, I told you that I would like to buy some different 4x4 car. A week later, a friend of mine sent a picture of tp3. I bought it, the year was 2007. 2 years of construction. I bought another tp3 in 2017. the first one I installed a Man diesel and the second is a Nissan sd33 engine. In this picture, both beautiesIMG_20200509_174821_resized_20210413_084331288.jpg
Very interested by your installation of the 6 cylinder Nissan...
Is it possible to share some pics of the installation?
Did you keep the same transmission?
Have you installed the turbo charge model or the regular atmospherique?
How did it drive with it? Speed , consumption?
Tks
-
- Outilleur
- Reactions :
- Messages : 40
- Enregistré le : 21 févr. 2020 21:14
Re: Greetings from Finland
The engine is without supercharger. Nissan patrol 4-speed gearbox and transfer case. Consumption approx. 14l at 80km/h, which is a suitable traveling speed. A bit lazy but more comfortable than the 712. I have an 8x43 axle. Better would be a 7x44 and a 5 speed transmission. The car is now in winter storage I can't get pictures.
Modifié en dernier par tp3 finland le 18 févr. 2023 10:57, modifié 1 fois.
-
- Conducteur de tricycle
- Reactions :
- Messages : 6
- Enregistré le : 17 juil. 2017 17:07
Re: Greetings from Finland
Beauties
Could you share photos of you engine fitting process?
Have fun
Could you share photos of you engine fitting process?
Have fun
-
- Outilleur
- Reactions :
- Messages : 40
- Enregistré le : 21 févr. 2020 21:14
Re: Greetings from Finland
viewtopic.php?t=15144
There are a few pictures (page 6) viewtopic.php?p=195695#p195695
and a little explanation of the installation in that conversation. I no longer have photos from the construction period
There are a few pictures (page 6) viewtopic.php?p=195695#p195695
and a little explanation of the installation in that conversation. I no longer have photos from the construction period
-
- Conducteur de tricycle
- Reactions :
- Messages : 6
- Enregistré le : 17 juil. 2017 17:07
Re: Greetings from Finland
Thank you for all thoses informations
I have a long way to go
I have a long way to go
-
- Outilleur
- Reactions :
- Messages : 40
- Enregistré le : 21 févr. 2020 21:14
Re: Greetings from Finland

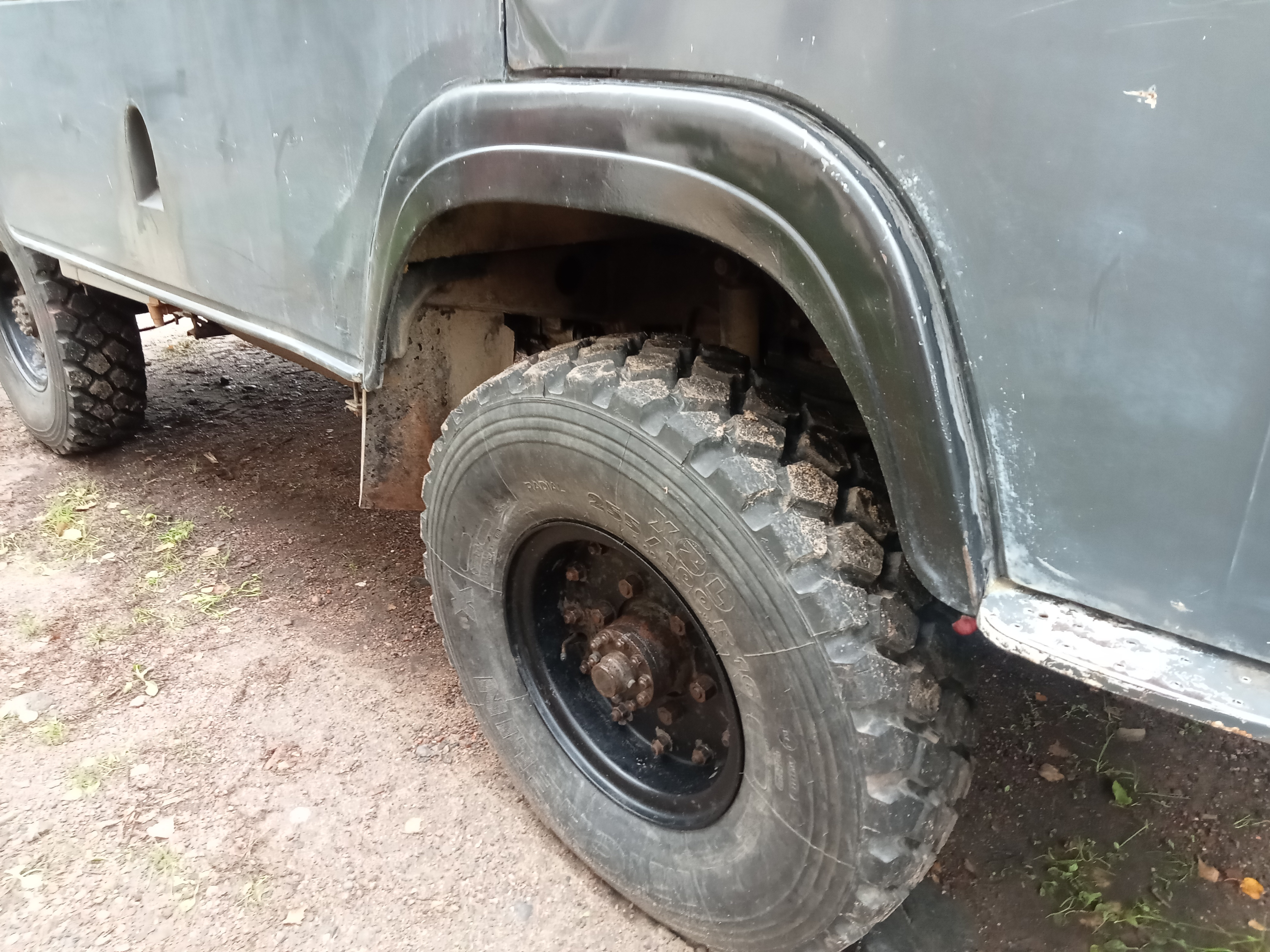

New tires installed. (255 /85r16)
-
- Outilleur
- Reactions :
- Messages : 40
- Enregistré le : 21 févr. 2020 21:14
Re: Greetings from Finland
after a few hundred kilometers I changed the old ones tires back. The new ones didn't fit on those rims. Terrible vibration
Re: Greetings from Finland
interresting, what makes you think the tires didn't fit the rims and would be the cause of vibrations ?
I mean I do understand that if your old tires are fine it is the tires that are the cause but can't it be that on another car or other rims it would have been the same ? did you try to get them properly balanced (I mean with led)
and what brand are they ? because some tires are just not well balanced and sometime impossible to get balanced. or the disposition of the rubber pad make resonnance even though they look very much like well known brand like goodrich (blackstar just to give one name as an example). viewtopic.php?p=115620#p115620
I mean I do understand that if your old tires are fine it is the tires that are the cause but can't it be that on another car or other rims it would have been the same ? did you try to get them properly balanced (I mean with led)
and what brand are they ? because some tires are just not well balanced and sometime impossible to get balanced. or the disposition of the rubber pad make resonnance even though they look very much like well known brand like goodrich (blackstar just to give one name as an example). viewtopic.php?p=115620#p115620
-
- Outilleur
- Reactions :
- Messages : 40
- Enregistré le : 21 févr. 2020 21:14
Re: Greetings from Finland
They tried to balance the tires, but the throw was 500-600g. The vertical throw could be seen with the eyes by approx. 10mm. The tires were turned to a different position, but it didn't help. The reason is probably that the edge of the rim is significantly higher than tubeless rims. You can see the mark left by the rim on the edge of the tire.
Re: Greetings from Finland
thank you for those precisions, we could be sure it is the reason only if they fit alright on other rims though...
but I am tracking that type of issue on another topic viewtopic.php?p=211106#p211106
is the brand of yours " cooper" from what I see here ?
but I am tracking that type of issue on another topic viewtopic.php?p=211106#p211106
is the brand of yours " cooper" from what I see here ?
-
- Outilleur
- Reactions :
- Messages : 40
- Enregistré le : 21 févr. 2020 21:14
Re: Greetings from Finland
The tire has a high rim protector which apparently caused the problem. The brand is Toyo open contry m/t
Re: Greetings from Finland
ok toyo thank you
some bad and good about those tires here search.php?keywords=toyo+open
otherwise note that on some goodrich at the time we had to cut away the sticking out rubber shape supposed to protect the edge of the rim due to that heigt difference. but note as well it would be strange if they do not turn round due to that because it is the inner circle that is supposed to locate them on the rim not the outer.
some bad and good about those tires here search.php?keywords=toyo+open
otherwise note that on some goodrich at the time we had to cut away the sticking out rubber shape supposed to protect the edge of the rim due to that heigt difference. but note as well it would be strange if they do not turn round due to that because it is the inner circle that is supposed to locate them on the rim not the outer.
-
- Outilleur
- Reactions :
- Messages : 40
- Enregistré le : 21 févr. 2020 21:14
Re: Greetings from Finland
http://intertp3.free.fr/Documents/Docfreeintertp3.htm
TP 3 repair manual
TP 3 repair manual
-
- Outilleur
- Reactions :
- Messages : 40
- Enregistré le : 21 févr. 2020 21:14
Re: Greetings from Finland

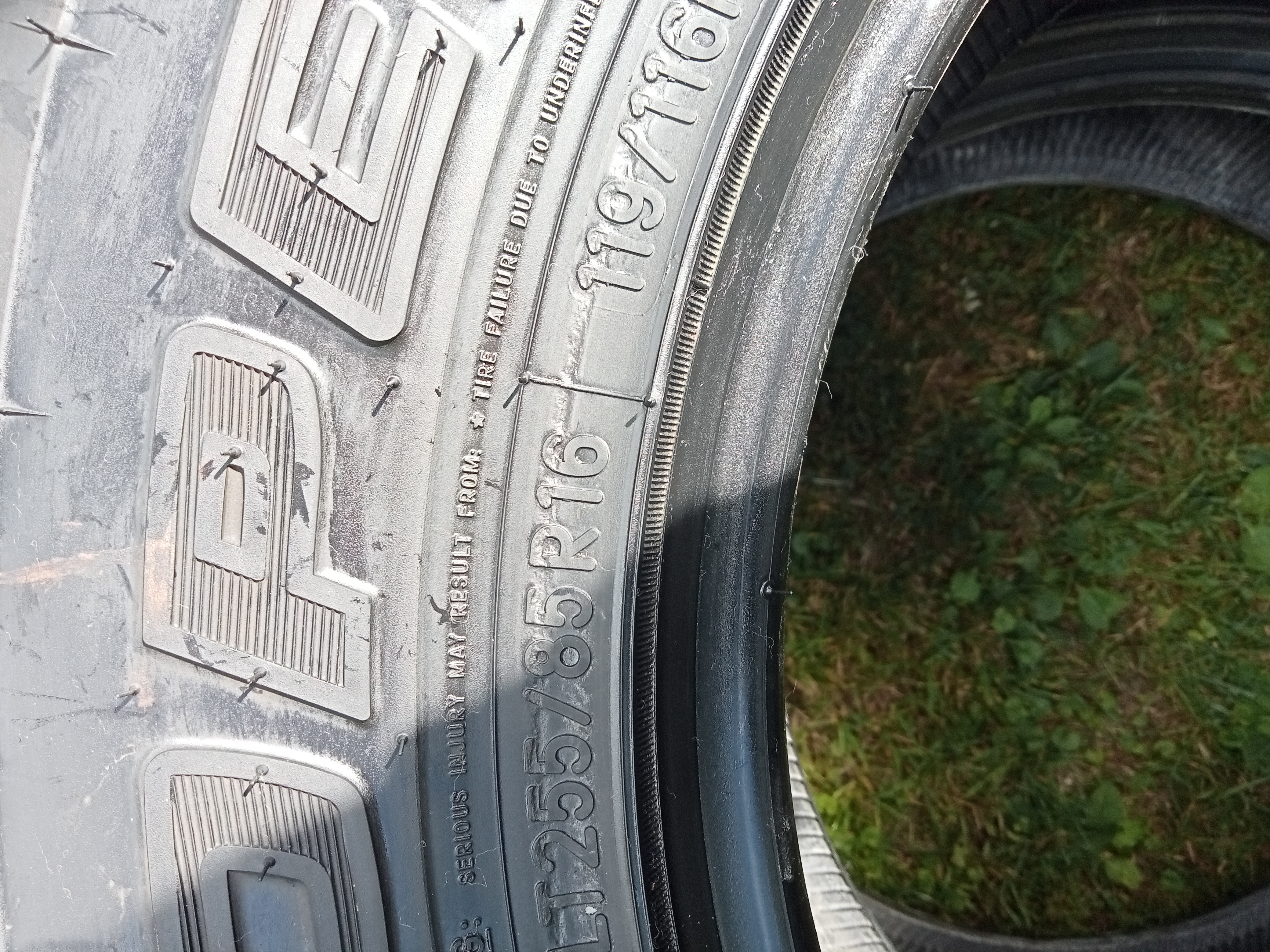

I finally got the tires. Old but unused

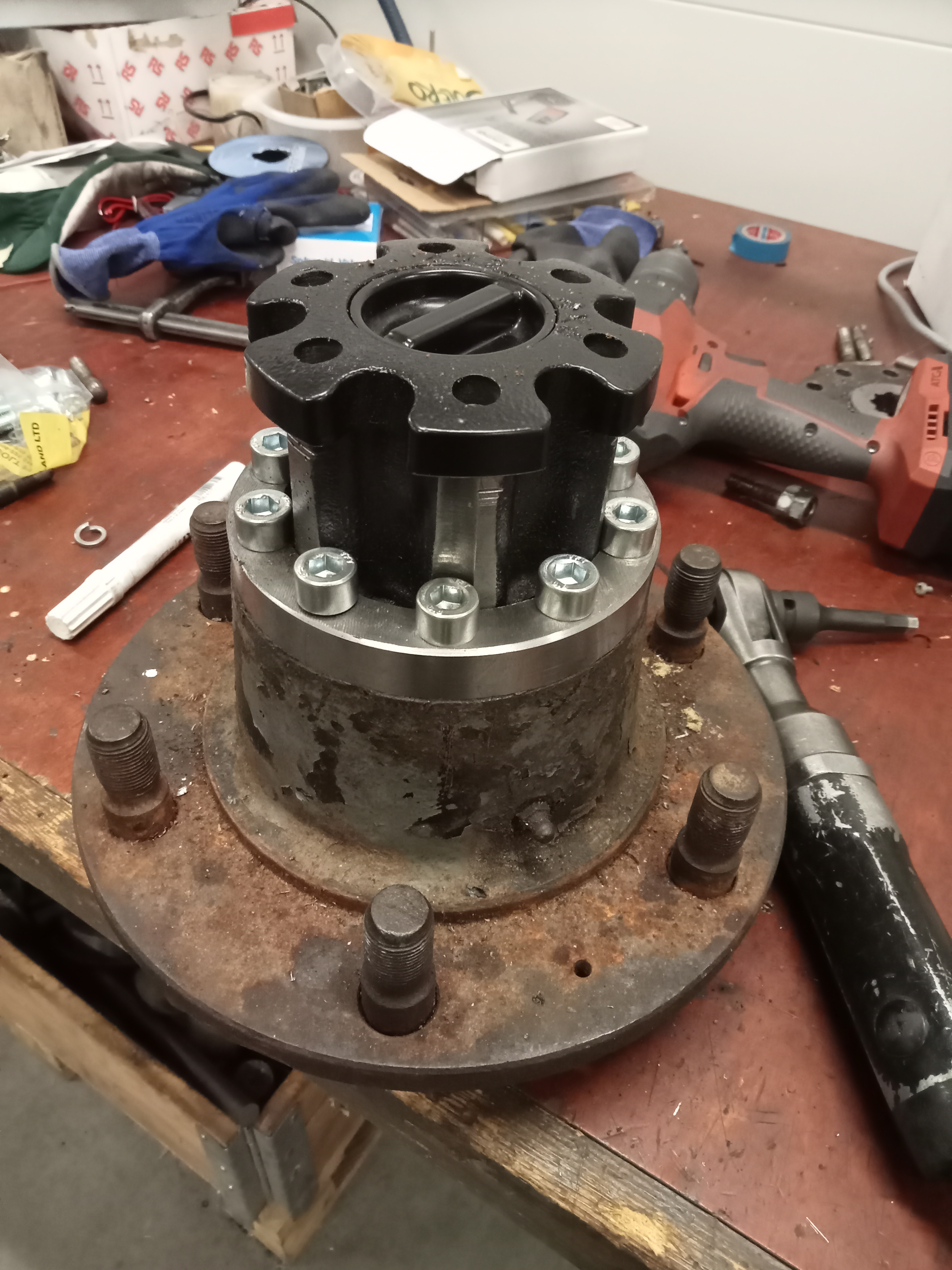

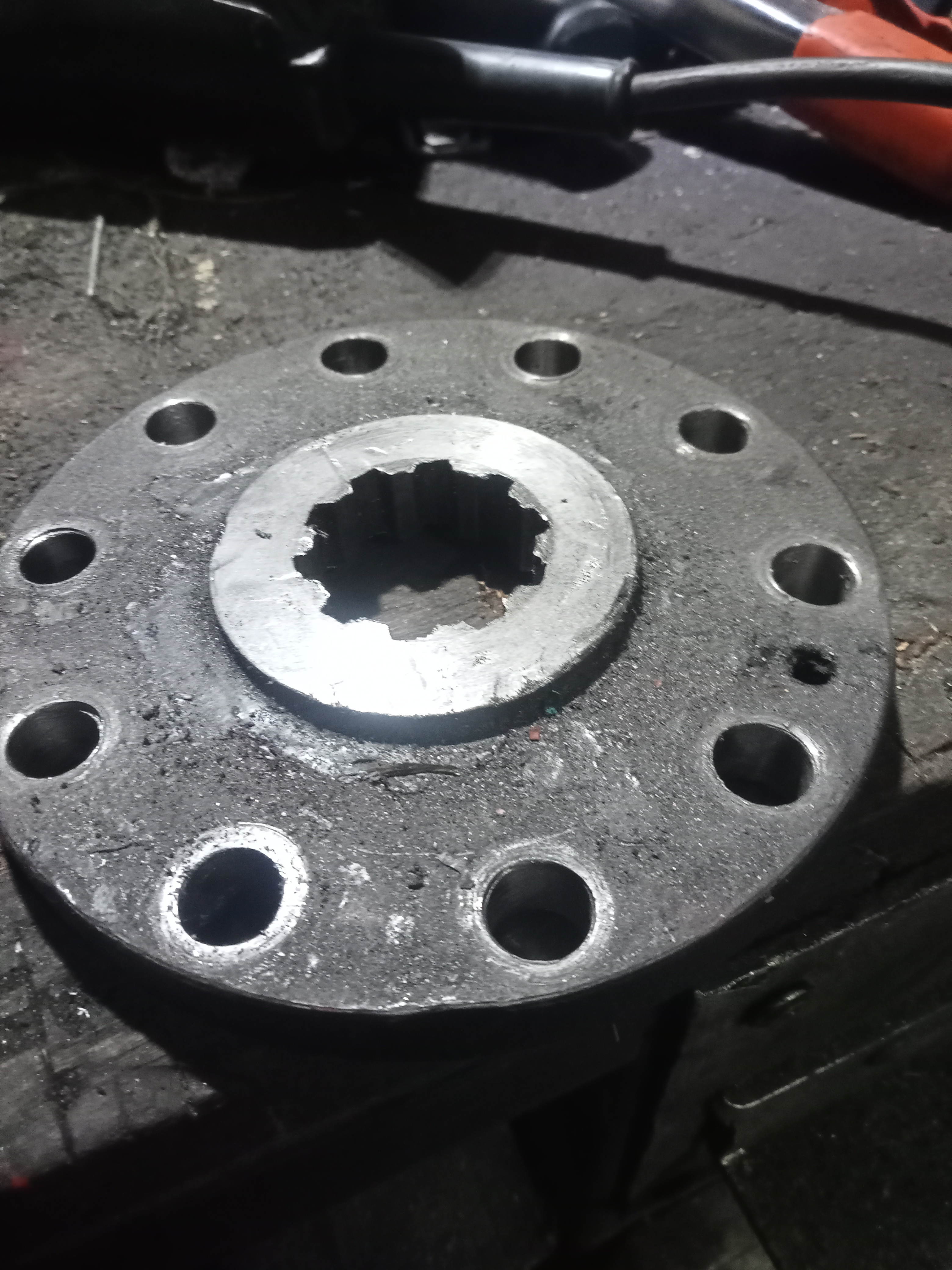

I also started a hub lock project. A new innermost part and mounting flange.

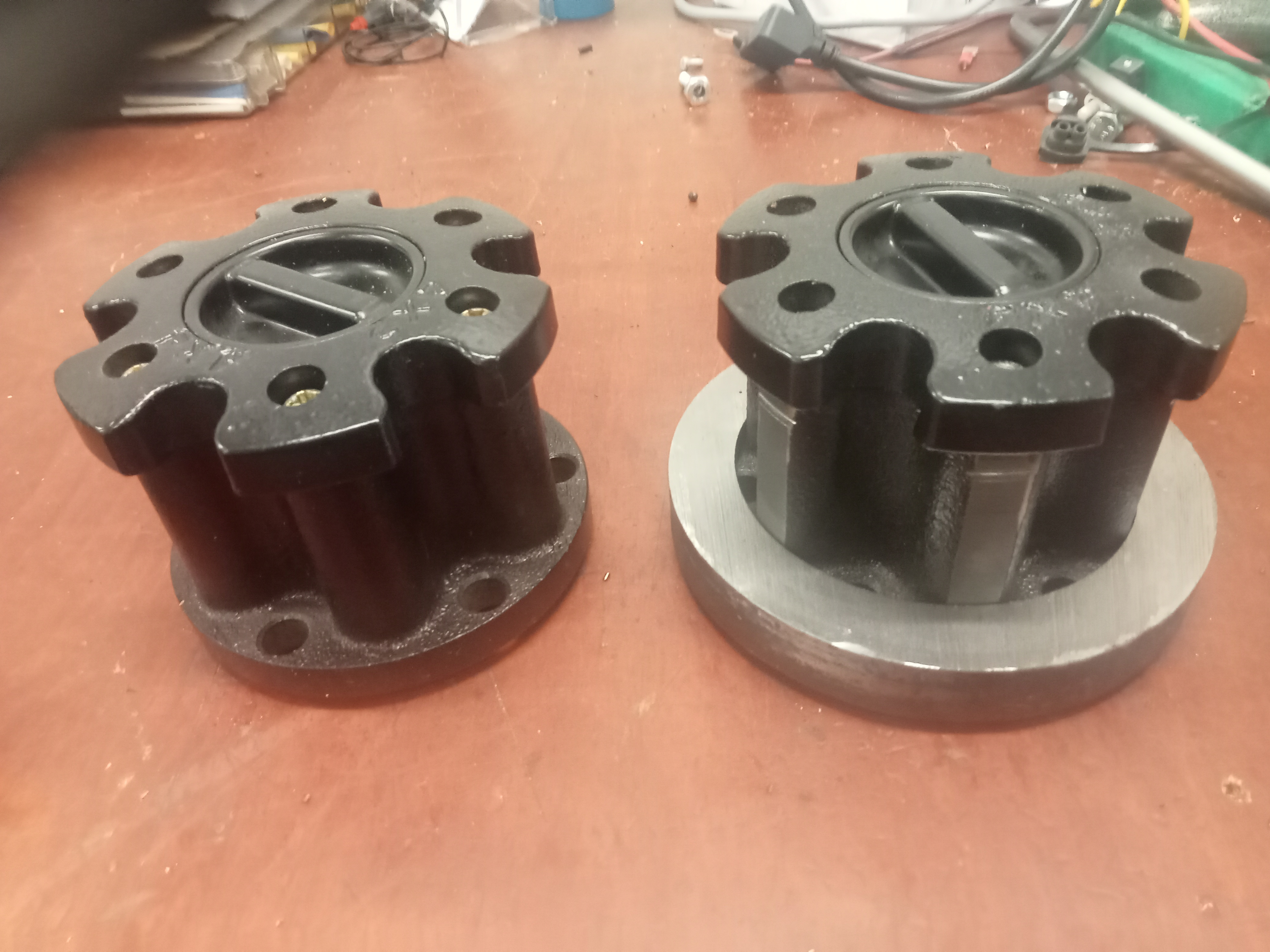

The lock is a modified UAZ
I have a spare part shaft, the inner part of which was made to attach the drive shaft from the flange. I haven't installed it in the car yetRe: Greetings from Finland
hyvin tehty herra.....
tp3
trm2000
B110 ponticelli
hdj80 12s
nissan 350z
renault r2087
clio 4 rs edc 200 modif,stage 1: 235ch et 319Nm
renault espace IV 2L turbo 170ch
B110 4x4,1999,ponts renault, 2.8L
trm2000
B110 ponticelli
hdj80 12s
nissan 350z
renault r2087
clio 4 rs edc 200 modif,stage 1: 235ch et 319Nm
renault espace IV 2L turbo 170ch
B110 4x4,1999,ponts renault, 2.8L
- HiddenTTY
- Je suis gentil tout plein.
- Reactions :
- Messages : 446
- Enregistré le : 24 juin 2022 10:51
- Nom de Famille : Noway
- Prénom(s) : Hlod
Re: Greetings from Finland
Hello, very interesting project i'm looking for the same solution with the Renault's B Hurths and Renaults version.tp3 finland a écrit : ↑01 oct. 2024 06:36 I also started a hub lock project. A new innermost part and mounting flange.
...
The lock is a modified UAZ
Did you machined custom inner splinned ring dédicated to the TP3 that goes into the UAZ hubs ?
Renault B120 Ponticelli
Peugeot 406 2.2i
Peugeot 406 2.2i
-
- Outilleur
- Reactions :
- Messages : 40
- Enregistré le : 21 févr. 2020 21:14
Re: Greetings from Finland

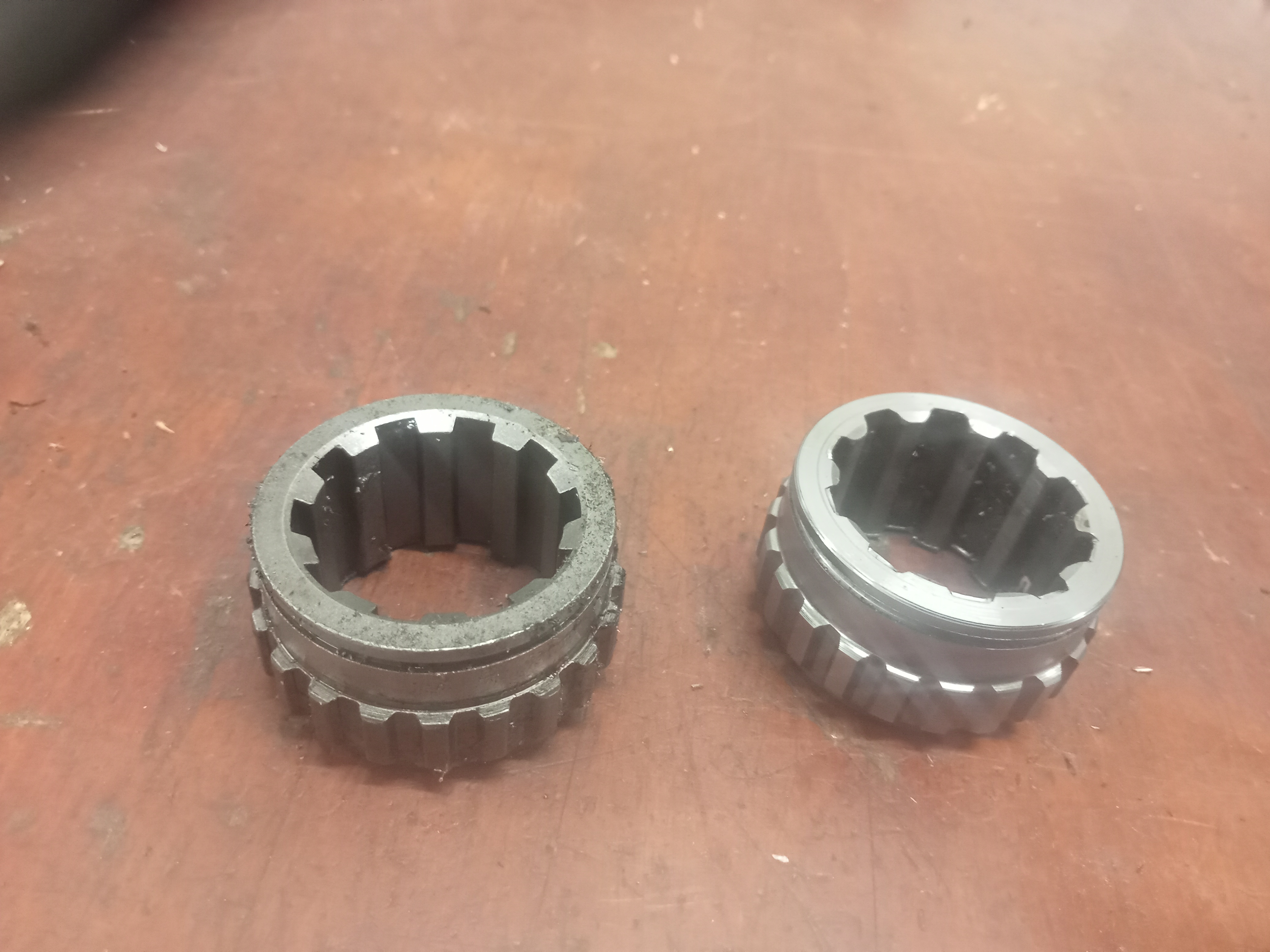

A pièce was cut from the original hub and grooves were machined on the outside.
https://www.avm.com.br/products4.htm
Here I found measurements based on which I ordered hub locks from Chinahttps://www.avm.com.br/products4.htm
